Automated CPR device Mechanical CPR machine Portable Chest Compressor
MCC-E Minituarize Chest Compressor

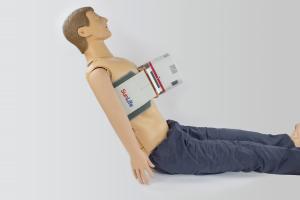

SunLife Miniaturize Chest Compressor MCC-E5 Suitable for Complex Environment with IP34 & EN1789 Certification
Features
Low Compression Risk
- Soft start, provide the adaptation period to compression, reduce the risk of fracture.
- 3D compression combines the theory of cardiac pump and thoracic pump, reducing the impact of compression.
- Low gravity center (<15cm), avoid toppling and hurting patients when moving at a high speed.
- The battery can work for 60 minutes and the device can work while charging, which makes the compression uninterrupted.
Improve Resuscitation Efficiency
- 3D compression, patented by Weil Critical Care Medicine, provides higher CPP.
- Keep continuous high-quality compression in mobile environment and stairway transportation to maximize CCF.
- Thoracic cavity is three-dimensional fixed, which without displacement.
- Suitable for Complex Environment
Suitable for Complex Environment
- IP34 and EN1789 Certification.
- Support the work at 45° inclination for Head-Up CPR.
- Applicable to the preparation of ECPR, hypothermia treatment, and PCI treatment.
- Separating of compression & operation by using the smart control panel
Smart Tool for Resuscitation
- Adjustable compression depth & rate, help users to develop the optimal compression strategy for different patients.
- CPR data can be displayed in real-time and CCF value is available after each compression.
- Multiple data communication options, including USB, Bluetooth and WiFi.
- An ideal tool to help build a Continuous Quality Improving System for monitoring, analysis and improvement
| Technical Sheet of Mechanical CPR Devices |
| Manufacturer | SunLife Science | SunLife Science |
| Model | MCC-E1 | MCC-E5 |
| Compression type | 3rd Generation: 3D Compression Technology | 3rd Generation: 3D Compression Technology |
| Weight (with battery) | 3.2kg | 3.2kg |
| Power source | Battery: 60 min; AC: 110~240V, 50~60Hz； | Battery: 60 min; AC: 110~240V, 50~60Hz； |
| Battery service life | 300 charge/discharge cycles | 300 charge/discharge cycles |
| Soft Start Design | Yes | Yes |
Smart Control Panel Making Resuscitation Visible and Fully Controllable
- Visible data, with 2.8 inches OLED screen feeding back the compression data in real-time.
- The depth and rate of compression can be adjusted for personalized treatment and scientific research.
- Statistics of CCF and other resuscitation data can be generated immediately after the rescue is completed.
- Large data capacity with the capacity of 180 hours of data.
- Supporting multi-channel transmission including USB, WiFi, and Bluetooth.
- CPR data cloud provides access to regional cardiac arrest events registration.
Compression rate, compression depth, compression mode, rescue time, event number, battery status and wireless connection.
Compression rate, compression depth, compression mode, date and time, data transmission mode and language.
CCF, compression rate, compression depth, rescue time, compression time and interruption time.
